[FD] JSON Deserialiser Unconstrained Resource Consumption Quick Overview

[Daniel Owens via Fulldisclosure <fulldisclosure@xxxxxxxxxxxx>]

As previously mentioned, via "Struts2 and Related Framework Array/Collection
DoS" (26 October 2025), hundreds of JavaScript object notation (JSON) libraries
are vulnerable to unconstrained resource consumption through large JSON arrays,
which, when deserialised, create arbitrarily large collections/arrays/data
structures.  This work looks specifically at the Apache Struts2 JSON Plugin,
using it as an example for why this vulnerability exists, how to exploit it.

Understanding Deserialisation
There are, regardless of the library, language, three methods of
deserialisating data:


  1.  Call constructors
  2.  Call setters
  3.  Set the variable directly

Most systems opt for #2, at least by default, and for a variety of reasons.  By
leveraging setters (and serialisation then often uses getters), the
deserialiser needn't reflect into non-public or static structures - they simply
use the default constructor to create the base object, then call to the
referenced or mapped public methods.  This means that the deserialiser, which
has to use reflection as part of the process (even if that reflection is
obscured - there are exceptions but they are not relevant to this discussion
and, even then, almost always still have reflection, even if outside of the
purview of the purported library), doesn't need to allow reflection to override
visibility or allow static references, either of which open the system up to a
large number of attacks.  While option #1 also can allow the same "safer"
reflection than option #3, it creates "bloat" with complex constructors,
multiple constructors just to rehydrate an object, so is less favoured by both
developers picking a deserialiser and individuals writing the deserialisers.
Option #3 requires the variables to be either directly exposed as public
variables, which makes race conditions and other issues more likely, gives up
control over the variable and shaping it (e.g., performing input validation,
sanitisation, and escaping as it flows into the object), etc., or requires the
deserialiser to allow reflecting into private variables, which makes the
deserialiser a massive target.

Both Struts2 and the Struts2 JSON Plugin prefer to use setters and getters for
the deserialisation/serialisation process (notably, a deserialiser need not
include a serialiser and vice versa).

The Flow

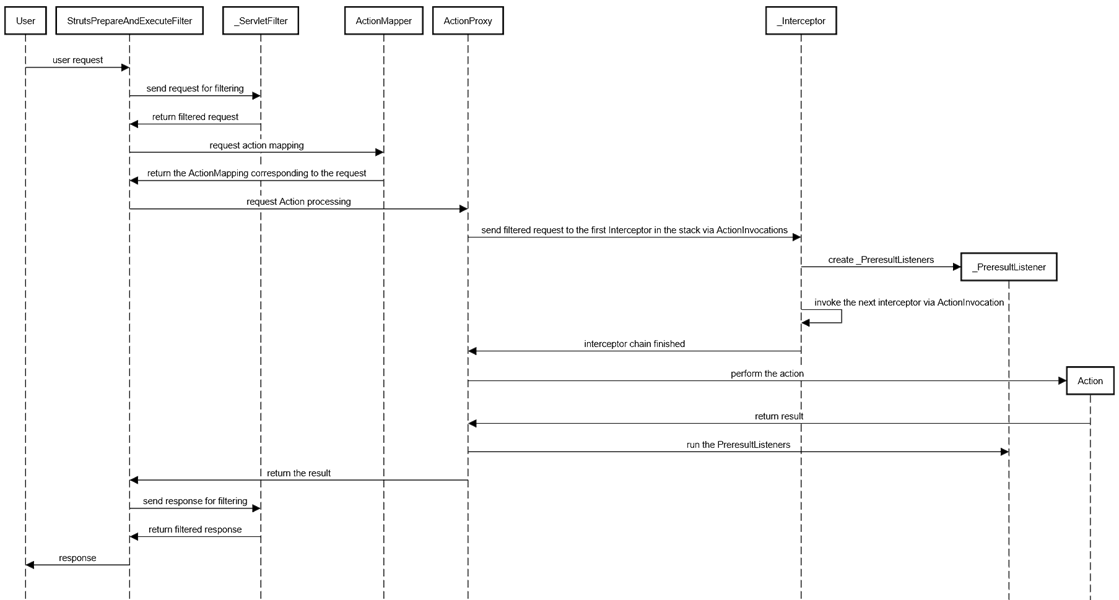

When a user makes a request to Apache Struts2, the data flows through the
StrutsPrepareAndExecuteFilter to all applicable ServletFilters, then to the
ActionMapper, the ActionProxy, all configured Interceptors, and eventually to
the mapped Action.  The deserialisers - be they the default Apache Struts2
deserialiser, the Apache Struts2 JSON Plugin, or something else - are
interceptors.  To help the reader visualise and understand this dataflow, we
have created the sequence diagram below.

[cid:image005.png@01DCADCB.ACA14A10]

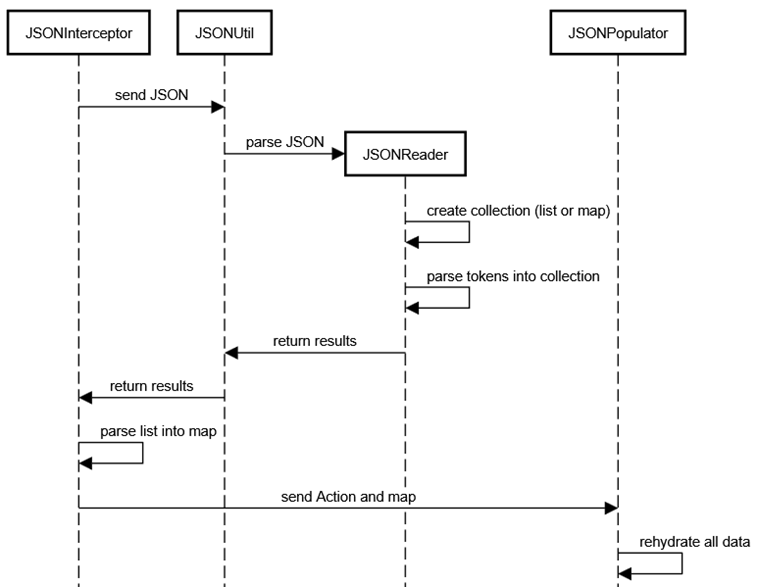

The Apache Struts2 JSON Plugin, itself, is composed of multiple classes, but
the classes of importance for this discussion are the JSONInterceptor,
JSONUtil, JSONReader, and JSONPopulator.  The following is a high-level diagram
showing the data flow of interest for this discussion - specifically focusing
on deserialisation of JSON arrays as the JSON flows through the library.

[cid:image006.png@01DCADCB.ACA14A10]

Vulnerable Code
The vulnerable code, in this example, is contained within JSONReader, which is
responsible for rehydration of the JSON string into either a Map or a List,
which is then bubbled up to the JSONUtil, returned to the JSONInterceptor (via
Object obj = JSONUtil.deserialize(request.getReader())), translated into a Map
if it is a list, and then the Map is passed to the JSONPopulator, which is
nothing more than a standard reflective layer that builds the objects, sets the
variables using the default constructor to instantiate objects and setters (if
it can find them) to set the variables.  Below is some of the offending code
that is vulnerable to trivial resource exhaustion, from JSONReader:


   protected List array() throws JSONException {
        List ret = new ArrayList();
        Object value = this.read();
        while (this.token != ARRAY_END) {
            ret.add(value);
            Object read = this.read();
            if (read == COMMA) {
                value = this.read();
            } else if (read != ARRAY_END) {
                throw buildInvalidInputException();
            }
        }
        return ret;
    }


Notably, this method foolishly will keep reading until it reaches a JSON array
terminator -- `]`.  Attackers can, as such, simply send large arrays and the
reader will continuously create new Java Object instances and add them to the
`ret` ArrayList.  The protected Map object() method suffers similarly,
endlessly adding Object instances to the `ret` HashMap.  In fact, this paradigm
is peppered throughout this code and that of, again, literally hundreds of JSON
deserialisers.

There are a few things to understand about why this is dangerous.

First, from a language-specific perspective, ArrayList and HashMap experience
automatic growth and both default to a rather small capacity (10 and 16,
respectively) and grow rather quickly (~50% and ~100% capacity increase,
respectively).  HashMap growth triggers when the size (number of elements in
the instance) exceeds the threshold (capacity * loadfactor, or put another way,
capacity * 0.75).  ArrayList grows only when one more element is added than it
has capacity.  The growth operation for both is O(n), where n is the number of
elements, but the memory impact is far greater than the compute, which, itself
becomes sizable quickly, since the memory must be allocated for the new data
structure while the old still exists - for a HashMap, that means that you go
from n to 3n, since the size doubles (2n) but the original is still in memory
during the copy operation.  For an ArrayList, it is closer to 2.5 - the size
increases to 1.5n and the original n remain in memory during the copy
operation.  Of course, on top of this, you have garbage collection, so the old
data structures - which are simply arrays - remain until they are cleaned up.

Outside of the language-specific perspective, attackers can simply create
arbitrarily large JSON arrays and, even if simply null, they will result in
stuffing entries into data structures.  Attackers can simply exhaust memory,
especially if they run just a few concurrent instances of malicious requests.
Even if attackers cannot exhaust memory, they can exhaust compute - the
information system must parse the entire array, must build out the data
structure, must then map the data structure out, and must then attempt to stuff
the data into the rehydrated object.

In this way, the attack operates to target both processor and memory of the
victim system and has been used to successfully bring down hundreds of
thousands of information systems within seconds and with just a few requests.

The Attack
Much like a "ping of death", "zip bomb", or related non-volumetric denial of
service attack, the attacker simply makes a request that forces unbounded
memory and compute:

{
  "id": "pizza",
  "parts": [
    null,
    null,
    null,
    null,
    ...<<14,000,000+>>,
    null
  ]
}

To facilitate this, a simple Python script can be made that prebuilds the
payload, inserting millions of "null," entries into the JSON array.  The
attacker then simply sends a few concurrent instances of the packet.
Wonderfully, if using "null,", each part is only 5 characters, so these attacks
aren't necessarily very many megabytes (70MB) and, realistically, resource
constrained environments, heavily used systems, etc., will struggle with
smaller payloads - attackers can adjust the levers by decreasing payload size
and, if needed, increasing the number of concurrent requests.

Mitigating
Realistically, if the JSON is in the body, setting body size limits on systems
that aren't especially resource constrained can help mitigate this attack.
While you could look for large numbers of "null," entries, attackers could
simply send garbage objects, strings, instead - the deserialiser doesn't know
or care what the actual data structure it is reflecting into at this point, so
attackers could give anything, because it's merely building out the mapping,
which is where the "evil" is occurring, and the reflection, which would try to
map the objects to actual data in the supposedly serialised object, has not
happened.
